本命令有如下输入参数：
SeparateMode - 分割模式，若SeparateMode = SingleSurface则单个表面将根据SeparateAngle被分割（需选择在分割网格上的一个面），若SeparateMode = AllSurfaces则所有表面将根据SeparateAngle被分割，若SeparateMode = BoundaryLayers则边界层将被分割，若SeparateMode = Intersections则多面交界会被分割，若SeparateMode = InternalPart则在网格处在实体内部的部分将被分割（需选择用于分割的实体）；
SeparateAngle (对SeparateMode = SingleSurface或AllSurfaces) - 定义分割破坏角；
AbsoluteAngle (对SeparateMode = SingleSurface或AllSurfaces) - 定义SeparateAngle是否使用绝对角度；
SeparateIntersections (对SeparateMode = SingleSurface或AllSurfaces) - 定义是否分割交界处；
ExactInside (对SeparateMode = InnerParts) - 定义被分割部分是否需严格出于实体内部。
The command has the following input parameters:
SeparateMode - the mode of the separation, if SeparateMode = SingleSurface, then a single surface will be separated according to SeparateAngle (a face on the separated mesh should be seleted), if SeparateMode = AllSurfaces, then all surfaces will be separated according to SeparateAngle, if SeparateMode = BoundaryLayers, then the bounday layers will be separated, if SeparateMode = Intersections, then the intersections of multiple faces will be separated, if SeparateMode = InternalPart, then the parts of the meshes lie inside the solids will be separated (the solid for the separation should be seleted);
SeparateAngle (for SeparateMode = SingleSurface or AllSurfaces) - defines the breaking angle for the separation;
AbsoluteAngle (for SeparateMode = SingleSurface or AllSurfaces) - specifies whether to use the abusolution angle for the SeparateAngle;
SeparateIntersections (for SeparateMode = SingleSurface or AllSurfaces) - specifies whether to separate intersections；
ExactInside (for SeparateMode = InnerParts) - specifies whether the separated parts should be exactly inside the solids.

这里是一个您可尝试的例子：DSeparate.3dm.
Here is the example for you to try: DSeparate.3dm.

选择需分割的面、网格或实体并使用该命令，之后网格将根据需求被分割。
Select the face, the meshes and the solids to separate and use this command, and the meshes will be separated accordingly.

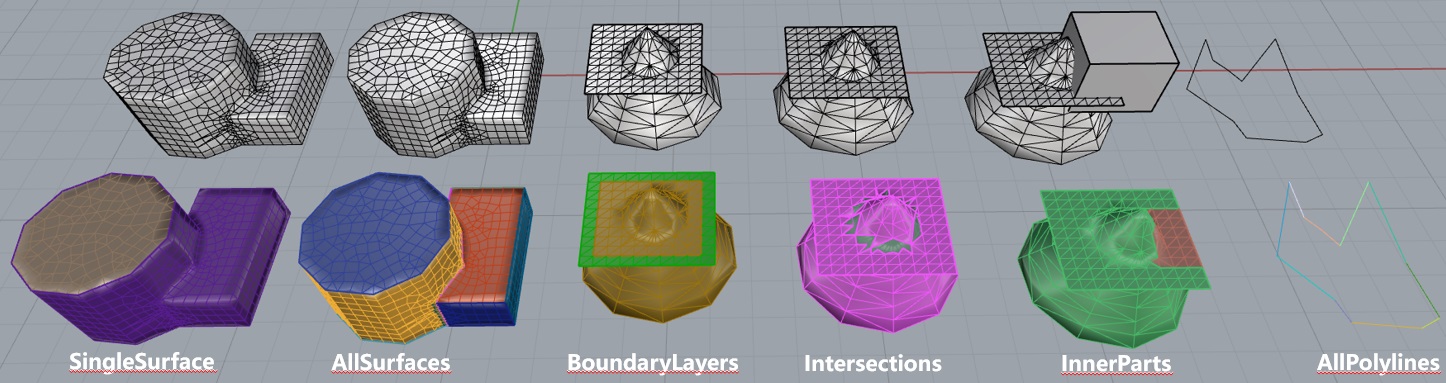

下图展示了当SeparateMode = SingleSurface的结果。
The following figure shows the result when SeparateMode =SingleSurface.

下图展示了当SeparateMode = AllSurfaces的结果。
The following figure shows the result when SeparateMode =AllSurfaces.

下图展示了当SeparateMode = BoundaryLayers的结果。
The following figure shows the result when SeparateMode =BoundaryLayers.

下图展示了当SeparateMode = Intersections的结果。
The following figure shows the result when SeparateMode =Intersections.

下图展示了当SeparateMode = InternalPart的结果。
The following figure shows the result when SeparateMode =InternalParts.
